Digital angle setup

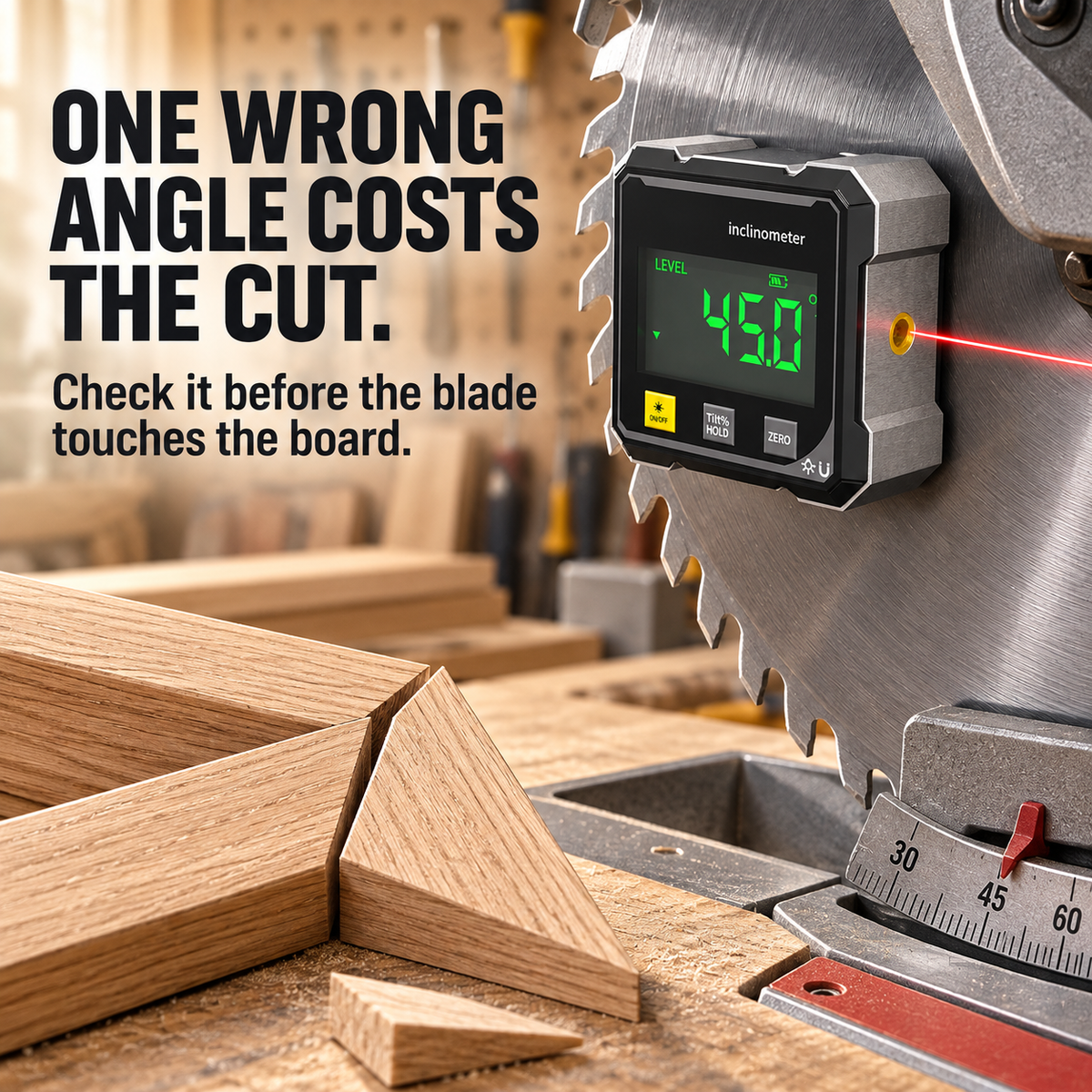

One wrong angle can cost the cut.
Check bevels, slopes, and relative angles before committing to the workpiece. The digital readout puts the setup in numbers—not guesswork.
Why the pre-check matters
The machine scale gets you close. The reading tells you where you are.
A small setup miss can show up at the joint, the edge, or the finished fit. Confirm the angle before material becomes the test piece.
Tiny errors add up
A slight bevel mismatch can create a visible gap across the finished assembly.
Some positions fight back
Awkward vertical or overhead surfaces make one-handed setup difficult.
Repeatability saves time
A relative zero makes it easier to compare one setup against the next.

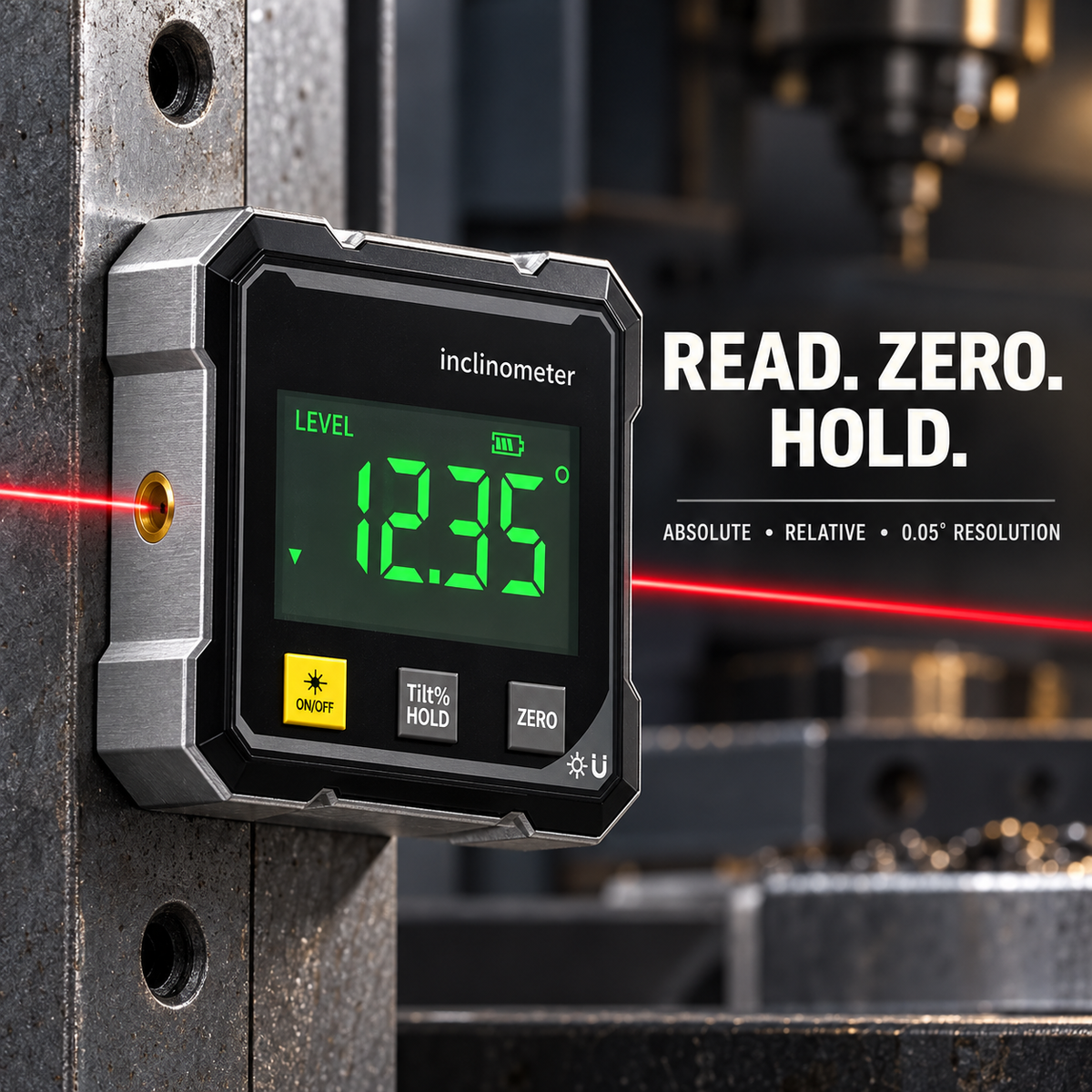

Read. Zero. Hold.
Three controls that make setup easier to repeat.
Read the angle on the high-contrast display, choose a fixed or custom reference, and hold the value when the screen is difficult to view in position.
- ABSRead against the gauge’s level reference.
- RELSet the current position as a custom zero point.
- HOLDKeep the displayed value visible after the check.

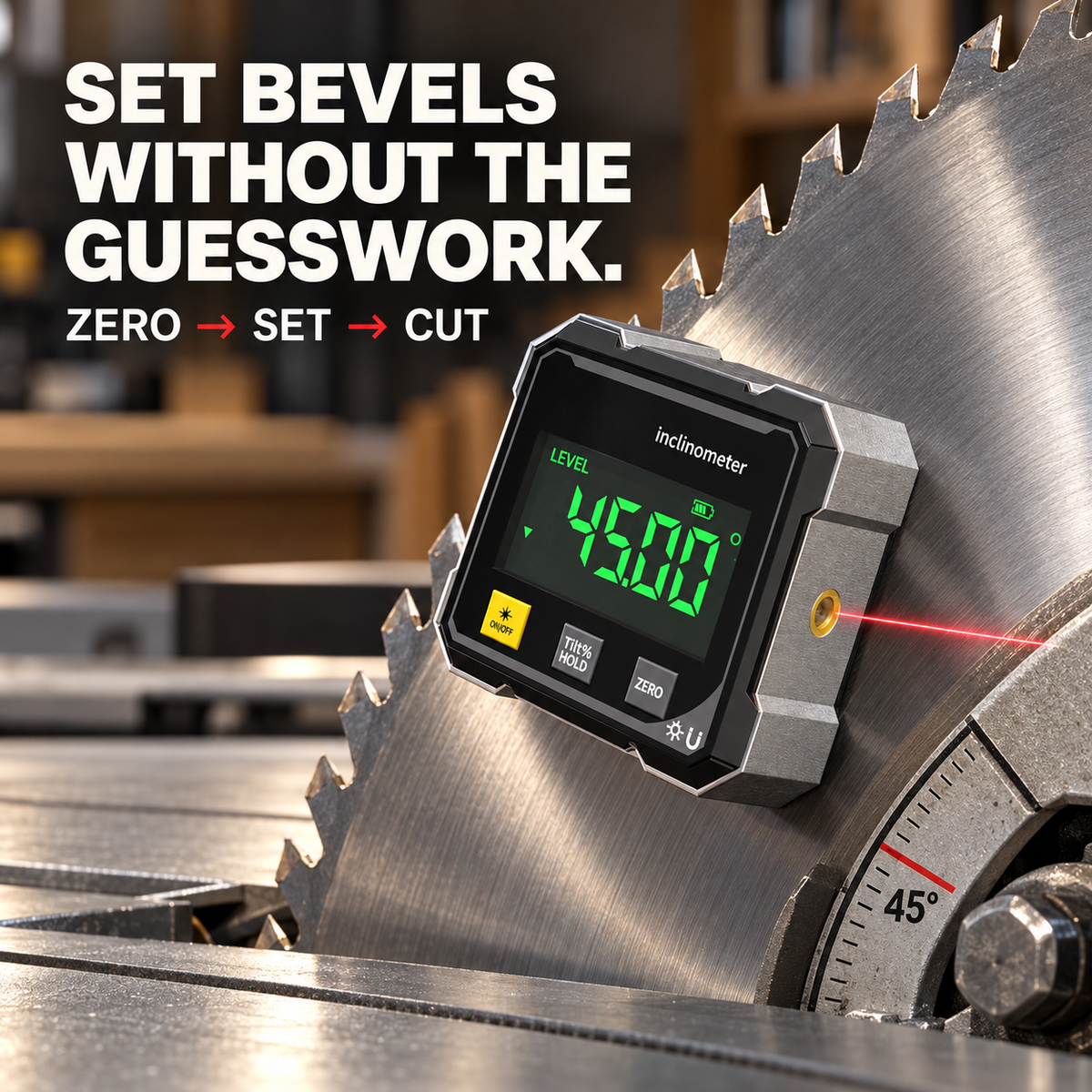

Before the blade moves
Set the bevel before you commit.
With the machine powered off, place the gauge, zero or read the angle, adjust the setup, and verify again. Remove the gauge before operating the machine.
Power off and disconnect the machine.
Place the gauge and select the reference mode.
Adjust until the target reading is reached.
Remove the gauge before operating or cutting.

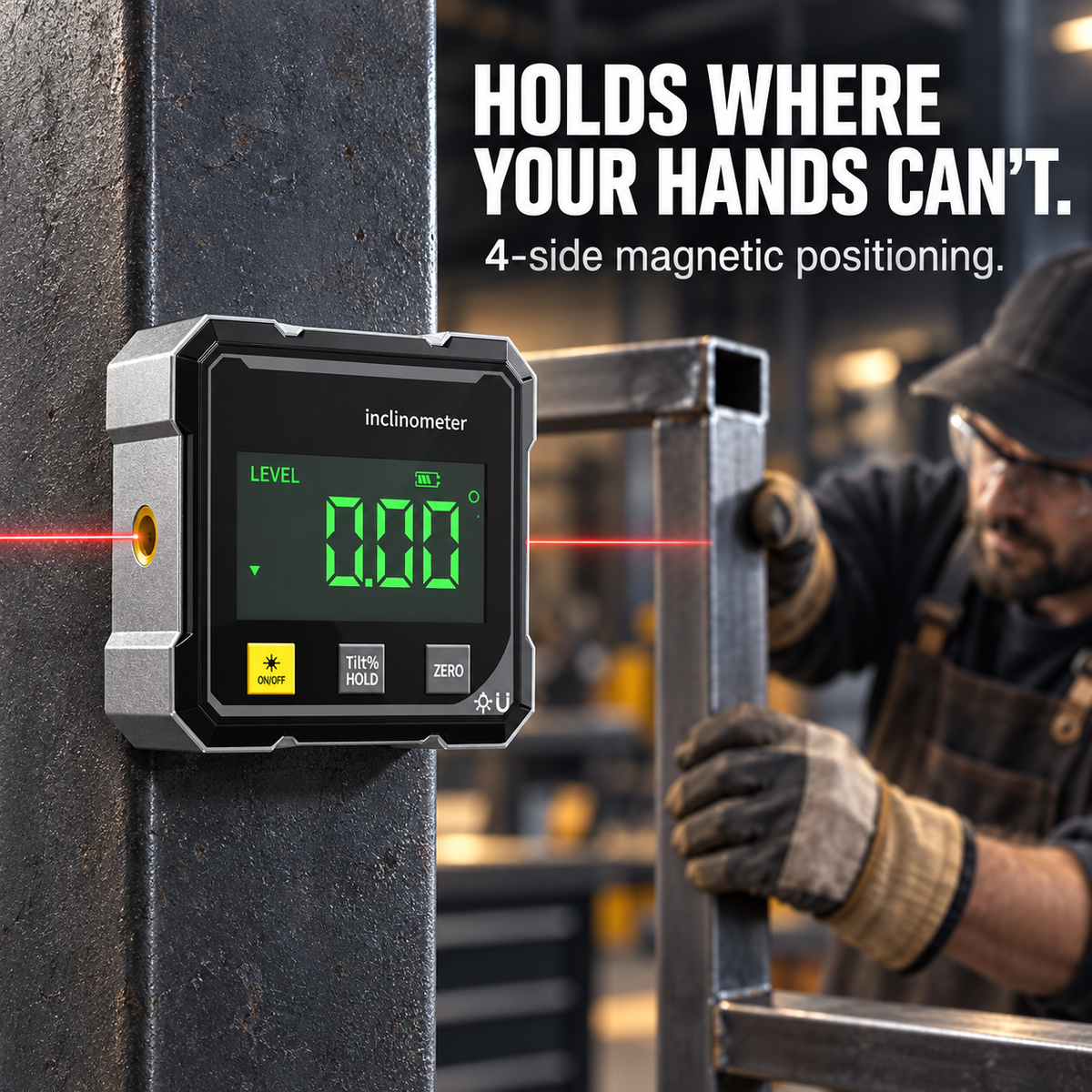

Four-side magnetic positioning
Fewer balancing acts during setup.
Magnetic attachment on all four sides gives you more ways to position the gauge on compatible iron and steel surfaces while making an adjustment.

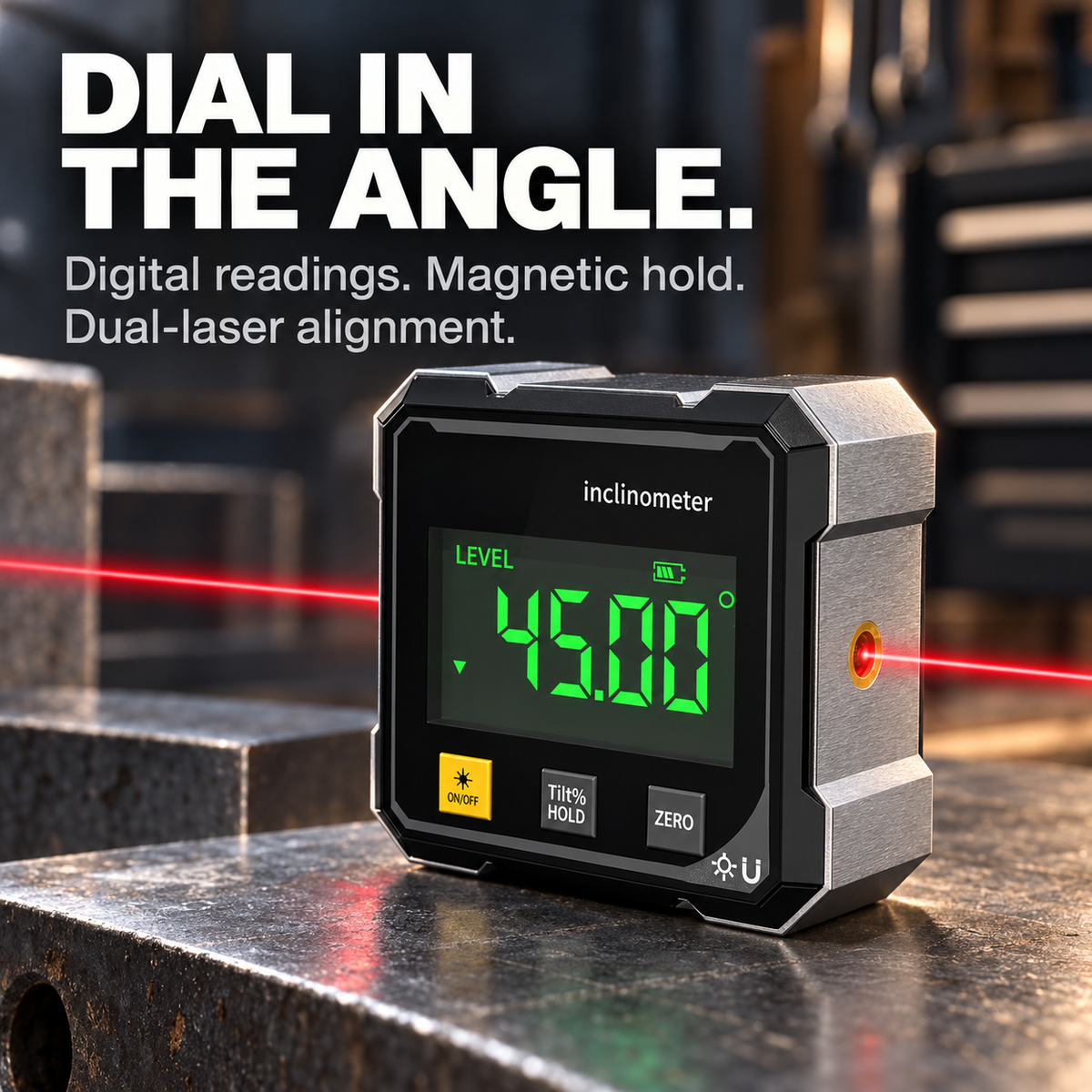

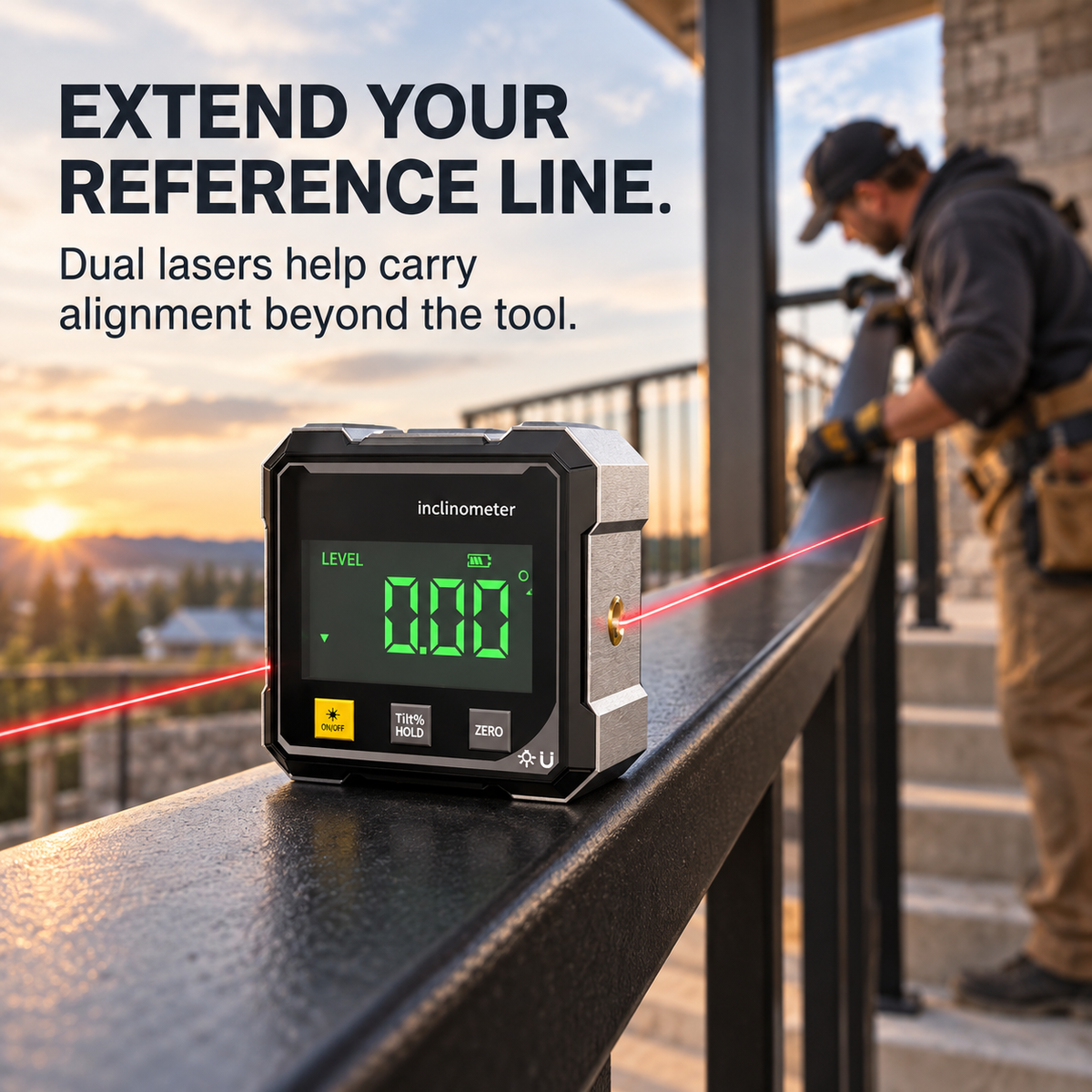

Extended visual reference
Carry the reference beyond the gauge.
The two laser guides project a visual line across a longer surface. The digital sensor provides the angle reading; the lasers help extend or transfer alignment.

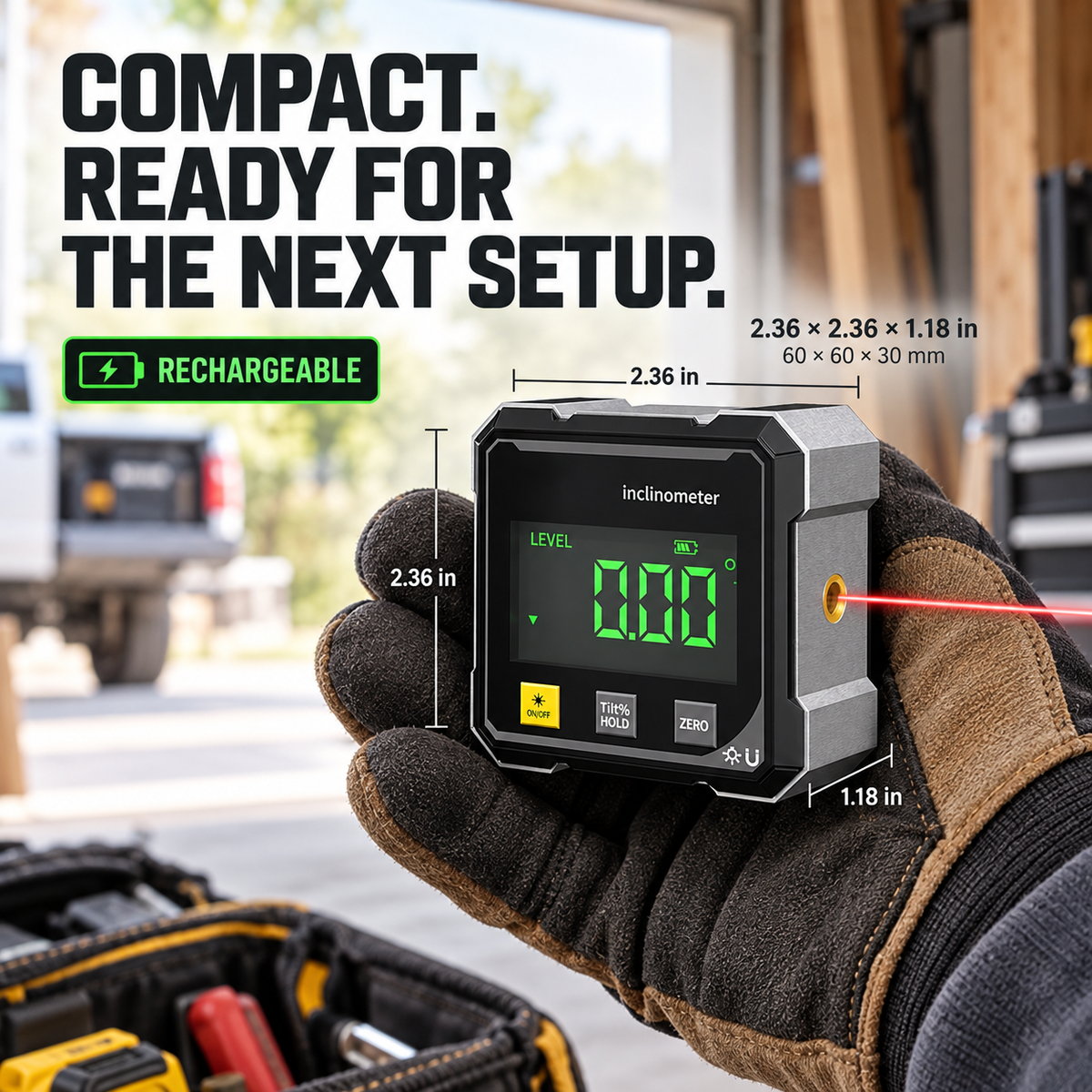

Compact and rechargeable
Small enough to keep close.
At roughly 2.4 × 2.4 × 1.2 in, the square gauge fits easily into a tool bag or setup drawer. Rechargeable power removes the routine need for disposable batteries.
Across the workshop
Useful wherever the setup depends on an angle.
Use the gauge as a digital reference for common setup, alignment, and slope checks—then verify the reading before the work begins.
Check the blade setup before cutting.
Read an incline numerically.
Attach on compatible ferrous work.
Use a custom reference zero.
Compare surfaces and alignment.
Check position before operation.
Product details
Know what the numbers mean.
Resolution describes the smallest displayed increment. Accuracy describes how closely a reading is expected to match the actual angle.
- Product type
- Digital angle gauge / inclinometer
- Display resolution
- 0.05°
- Current listing states
- ±0.2° accuracy
- Reference modes
- Absolute and relative
- Display function
- Digital reading with data hold
- Laser
- Two visual guide lasers
- Magnetic attachment
- Four sides; compatible ferrous surfaces
- Power
- Rechargeable
- Approximate size
- 2.4 × 2.4 × 1.2 in
- Color
- Black and gray
The accuracy figure comes from the current product information. ZERO creates a relative reference; it is not a calibration certificate. Check the gauge against a known reference and verify critical work appropriately.
Quick questions
Before the first setup.
What is the difference between Absolute and Relative Mode?
Absolute Mode reads against the gauge’s level reference. Relative Mode lets you set the current position as zero and compare another angle against it.
Does the laser take the angle measurement?
No. The digital sensor provides the angle reading. The two lasers act as visual guides for extending or transferring alignment.
Will the magnets attach to every metal surface?
No. They are intended for compatible ferrous surfaces such as many iron and steel parts. They will not hold to aluminum, copper, or many stainless-steel surfaces.
Can I leave it attached while a saw or machine is running?
No. Power the equipment off before positioning the gauge, and remove the gauge before cutting or operating the machine.
What do 0.05° and ±0.2° mean?
0.05° is the listed display resolution, or reading increment. The current product information states ±0.2° accuracy. Check the gauge against a known reference before critical work.
How large is the gauge?
The current product image shows approximately 2.4 × 2.4 × 1.2 in. Minor source differences make this best treated as an approximate size.
Measure first. Adjust once. Then make the cut.
A compact digital reference for the setup checks you would rather verify than redo.
